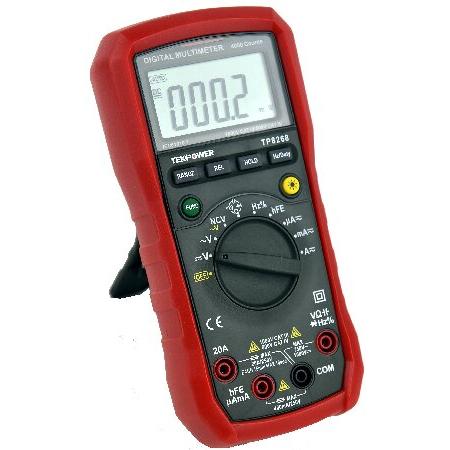

Tekpower TP8268 AC DC Auto/Manual Range Digital Multimeter with NCV Feature, Mastech MS8268 Upgraded

ご注文確定後、海外拠点から日本へ発送いたしますのでお届けまでに5-10営業日(土日祝日除く)程度お時間を頂いております。税関での通関時に商品の開封検査を受けることがございますが、商品の品質に影響はございませんのでご安心ください。その他、商品に関するご不明点等はお気軽にお問い合わせください。無線機器等につきまして、日本国内で使用される場合電波法に違反する可能性がございますので十分ご注意ください。

• The Mastech TP8268 is an auto/manual ranging digital multimetera newer version of MS8268 belongs to MS8261 series
• With many great features such as NCV and back-lit LCD Screen
• DC 1000V/20A 200KHz 200uF 40Mohm Relative Measurement hFE Diode Check Continuity
• AC 750V/20A, Audible on short circuit<60 ohms
• Relative Measurement for the ranges

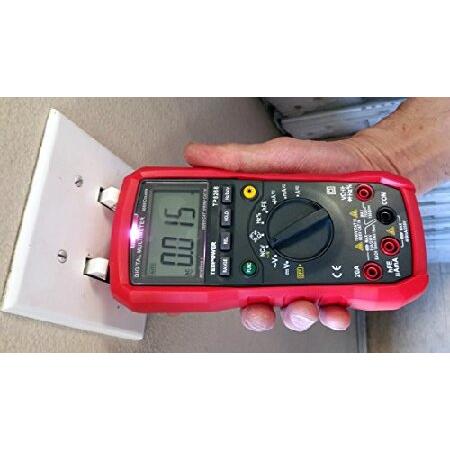

説明: This is a upgraded model of the MS8268 with better accuracy and more features. The new NCV (Non Contact Voltage Detection) is a great feature that let you know any voltage over 110V AC (RMS) without touch the wire. Very useful feature to find hidden wire. Auto and Manual Ranging with Relative measurement (all ranges except frequency)
For detail info, see the chart in the images.

Specifications:
1.DC Voltage:400mV-4V-40V-400V-1000V
2. AC Voltage:400mV-4V-40V-400V-750V
3. Frequency:9.99Hz-99.99Hz-999.9Hz-9.999Khz-999.9Khz-9.999MHz
4. Resistance: 400Homs-4K-49K-400K-4M-40MOhms
5. Diode: DC Current: 1mA
6. Audible Contnuity<60 Ohms
7. Transistor: hFE0-1000
8.Capacitance: 4nF-40nF-400nF-4uF-40uF-200uF
9.DC Current: 400uA-4mA-40mA-400mA-4A-20A
10. AC Current:400uA-4mA-40mA-400mA-4A-20A

Auto power off (could be disabled) & Blue LED Back-lit LCD display
9V Batteries included
Package Contents: 1x TEKPOWER TP8268
1X Pair of High Quality Test Leads 1X Multi-function Adapter for hFE and Cap Test.

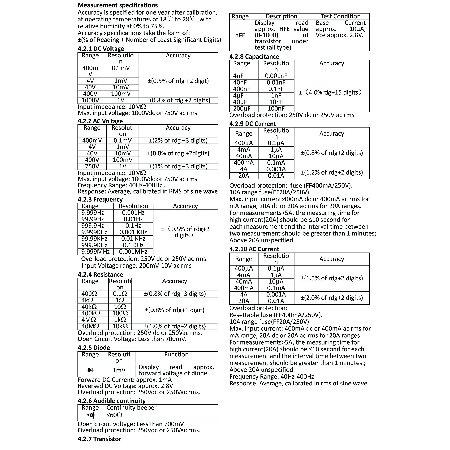

Detail Specifications are shown in the image or send email to Tekpower to get it.

カテゴリー:
メーカー: Mastech
ブランド: Tekpower
高さ: 6.1 センチ
幅: 20.8 センチ
奥行: 13.0 センチ
重量: 0.5 Kg
